Heavy Structural Products

As your single source for steel supply, all your heavy structural products will arrive on-site ready for riveting, bolting, or welding. As your partner in everything steel supply, we help you manage supply chain logistics and inventory requirements to keep your costs low. And we guarantee you a fixed rate based on your timeline and purchase order.

Call us today for next day delivery and place an order for every steel piece you need.

Jumbo Beams

Intsel Steel West carries a wide range of grades and sizes from 10” x 100# through 4” x 500# and everything in between. We ensure you have the highest-quality materials by sourcing steel from around the world to protect your bridges, buildings, parking garages, and more with the strongest beams for your load-bearing construction.

A992 / A572-50

When you need high corrosion resistance and a weight reduction for cost savings, this HSLA (high-strength, low-alloy) structural steel beam will met your requirements with a minimum tensil strength of 65 ksi and minimum yield of 50 ksi. Dual certified to meet A572 Grade 50, this heavy structural steel material contains a columbium and vanadium mixture for improved strength and weldability. It is one of the most commonly used steel materials in construction projects.

Other grades available upon request.

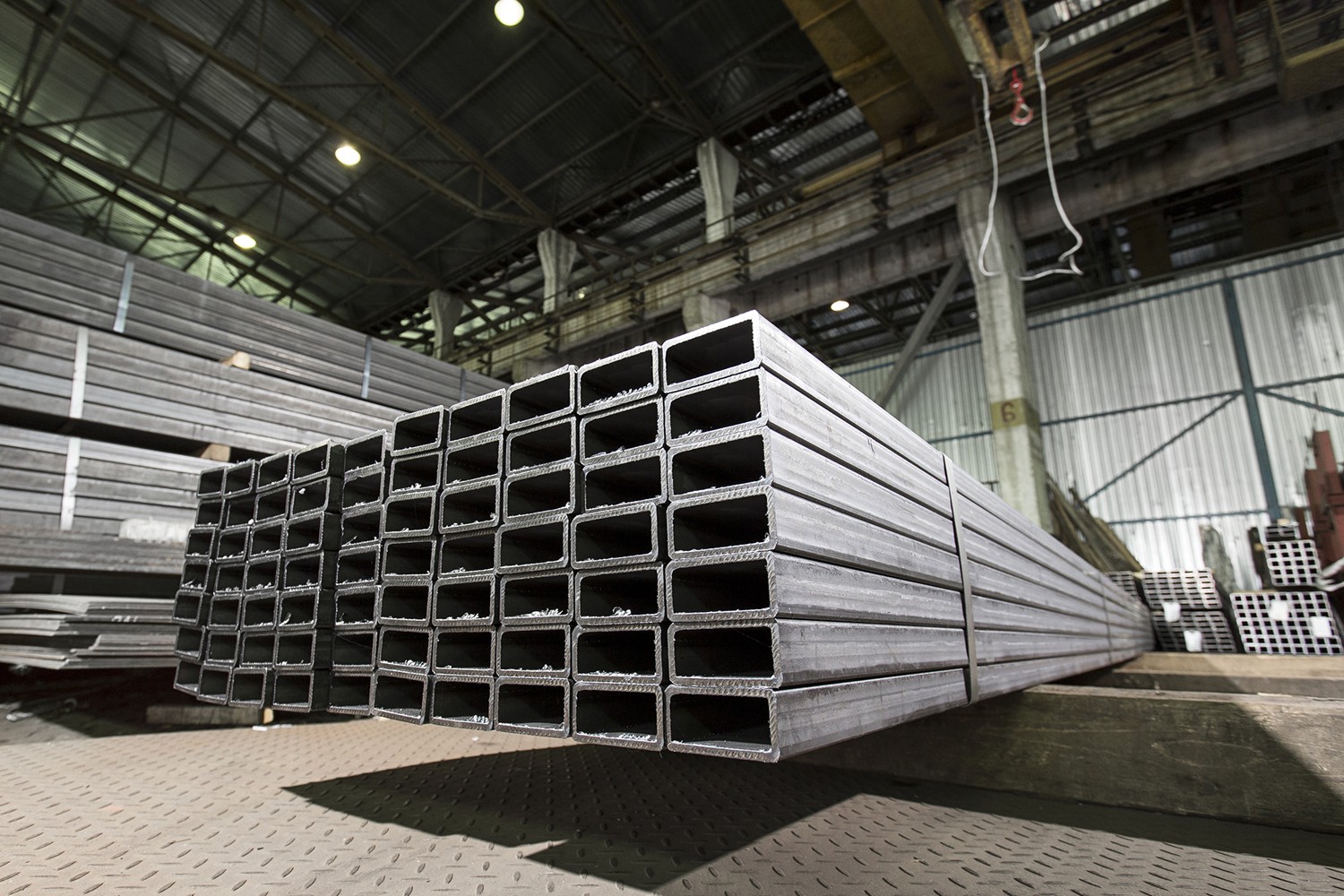

Jumbo Tubes

Intsel Steel West heavy structural tubes come in a range of sizes from 10” x 4” x 5/8” through 20” x 12” x 5/8” in square and rectangular sizes. We understand that these tubes will be used for bridges, buildings, and more, so we source steel from around the world to get you the highest quality out there.

A500B

A500B HSLA (high-strength, low-alloy) steel is a common material in construction applications with a minimum yield of 50 ksi and a minimum tensile strength of 65 ksi. We recommend this steel wherever high corrosion resistance and weight reduction is necessary to the design or budget.

Other grades available upon request.

HP Beams Junior Beam Standard I Beams - 20ft to 60ft Wide Flange Beams

Type	Size	Weight Per Ft.	Depth of Section	Flange Width	Flange Thickness	Web Thickness
HP Beams	14in	117.0lb	14.21in	14.885in	0.805in	0.805in
HP Beams	14in	102.0lb	14.01in	14.785in	0.705in	0.705in
HP Beams	14in	89.0lb	13.83in	14.695in	0.615in	0.615in
HP Beams	14in	73.0lb	13.61in	14.585in	0.505in	0.505in
HP Beams	12in	84.0lb	12.28in	12.295in	0.685in	0.685in
HP Beams	12in	74.0lb	12.13in	12.215in	0.610in	0.605in
HP Beams	12in	63lb	11.94in	12.125in	0.515in	0.515in
HP Beams	12in	53.0lb	11.78in	12.045in	0.435in	0.435in
HP Beams	10in	57.0lb	9.99in	10.225in	0.565in	0.565in
HP Beams	10in	42lb	9.70in	10.075in	0.420in	0.415in
HP Beams	8in	36.0lb	8.02in	8.155in	0.445in	0.445in
Standard I Beams - 20ft to 60ft	S3	5.7	3	2.33	0.26	0.17
Standard I Beams - 20ft to 60ft	S4	7.7	4	2.66	0.293	0.193
Standard I Beams - 20ft to 60ft	S5	10	5	3	0.326	0.214
Standard I Beams - 20ft to 60ft	S6	12.5	6	3.332	0.359	0.232
Standard I Beams - 20ft to 60ft	S7	15.3	7	3.662	0.392	0.252
Standard I Beams - 20ft to 60ft	S8	18.4	8	4.001	0.425	0.271
Standard I Beams - 20ft to 60ft	S10	25.4	10	4.661	0.491	0.311
Standard I Beams - 20ft to 60ft	S12	31.8	12	5	0.544	0.35
Standard I Beams - 20ft to 60ft	S15	42.9	15	5.501	0.622	0.411
Standard I Beams - 20ft to 60ft	S18	54.7	18	6.001	0.691	0.461
Standard I Beams - 20ft to 60ft	S20	66	20	6.255	0.795	0.505
Standard I Beams - 20ft to 60ft	S20	86	20.3	7.06	0.92	0.66
Standard I Beams - 20ft to 60ft	S24	80	24	7	0.87	0.5
Standard I Beams - 20ft to 60ft	S24	106	24.5	7.87	1.09	0.62
Wide Flange Beams	W21	223	23.35	12.68	1.79	1
Wide Flange Beams	W21	201	23.03	12.56	1.63	0.91
Wide Flange Beams	W21	182	22.72	12.5	1.48	0.83
Wide Flange Beams	W21	166	22.48	12.42	1.36	0.75
Wide Flange Beams	W21	147	22.06	12.51	1.15	0.72
Wide Flange Beams	W21	132	21.83	12.44	1.035	0.65
Wide Flange Beams	W21	122	21.68	12.39	0.96	0.6
Wide Flange Beams	W21	111	21.51	12.34	0.875	0.55
Wide Flange Beams	W21	101	21.36	12.29	0.8	0.5
Wide Flange Beams	W21	93	21.62	8.42	0.93	0.58
Wide Flange Beams	W21	83	21.43	8.355	0.835	0.515
Wide Flange Beams	W21	73	21.24	8.295	0.74	0.455
Wide Flange Beams	W21	68	21.13	8.27	0.685	0.43
Wide Flange Beams	W21	62	20.99	8.24	0.615	0.4
Wide Flange Beams	W21	55	20.8	8.22	0.522	0.375
Wide Flange Beams	W21	48	20.62	8.14	0.43	0.035
Wide Flange Beams	W21	57	21.06	6.555	0.65	0.405
Wide Flange Beams	W21	50	20.83	6.53	0.535	0.38
Wide Flange Beams	W21	44	20.66	6.5	0.45	0.35
Wide Flange Beams	W18	311	22.32	12.005	2.74	1.52
Wide Flange Beams	W18	283	21.85	11.89	2.5	1.4
Wide Flange Beams	W18	258	21.46	11.77	2.3	1.28
Wide Flange Beams	W18	234	21.06	11.65	2.11	1.16
Wide Flange Beams	W18	211	20.67	11.555	1.91	1.06
Wide Flange Beams	W18	192	20.35	11.455	1.75	0.96
Wide Flange Beams	W18	175	20.04	11.375	1.59	0.89
Wide Flange Beams	W18	158	19.72	11.3	1.44	0.81
Wide Flange Beams	W18	143	19.49	11.22	1.32	0.73
Wide Flange Beams	W18	130	19.25	11.16	1.2	0.67
Wide Flange Beams	W18	119	18.97	11.265	1.06	0.655
Wide Flange Beams	W18	106	18.73	11.2	0.94	0.59
Wide Flange Beams	W18	97	18.59	11.145	0.87	0.535
Wide Flange Beams	W18	86	18.39	11.09	0.77	0.48
Wide Flange Beams	W18	76	18.21	11.035	0.68	0.425
Wide Flange Beams	W18	71	18.47	7.635	0.81	0.495
Wide Flange Beams	W18	65	18.35	7.59	0.75	0.45
Wide Flange Beams	W18	60	18.24	7.555	0.695	0.415
Wide Flange Beams	W18	55	18.11	7.53	0.63	0.39
Wide Flange Beams	W18	50	17.99	7.495	0.57	0.355
Wide Flange Beams	W18	45	17.86	7.48	0.5	0.34
Wide Flange Beams	W18	46	18.06	6.06	0.605	0.36
Wide Flange Beams	W18	40	17.9	6.015	0.525	0.315
Wide Flange Beams	W18	35	17.7	6	0.425	0.3
Wide Flange Beams	W16	100	16.97	10.425	0.985	0.585
Wide Flange Beams	W16	89	16.75	10.365	0.875	0.525
Wide Flange Beams	W16	77	16.52	10.295	0.76	0.455
Wide Flange Beams	W16	67	16.33	10.235	0.665	0.395
Wide Flange Beams	W16	57	16.43	7.12	0.715	0.43
Wide Flange Beams	W16	50	16.26	7.07	0.63	0.38
Wide Flange Beams	W16	45	16.13	7.035	0.565	0.345
Wide Flange Beams	W16	40	16.01	6.995	0.505	0.305
Wide Flange Beams	W16	36	15.86	6.985	0.43	0.295
Wide Flange Beams	W16	31	15.88	5.525	0.44	0.275
Wide Flange Beams	W16	26	15.69	5.5	0.345	0.25
Wide Flange Beams	W14	730	22.42	17.89	4.91	3.07
Wide Flange Beams	W14	665	21.64	17.65	4.52	2.83
Wide Flange Beams	W14	605	20.92	17.415	4.16	2.595
Wide Flange Beams	W14	550	20.24	17.2	3.82	2.38
Wide Flange Beams	W14	500	19.6	17.01	3.5	2.19
Wide Flange Beams	W14	455	19.02	16.835	3.21	2.015
Wide Flange Beams	W14	426	18.67	16.695	3.035	1.875
Wide Flange Beams	W14	398	18.29	16.59	2.845	1.77
Wide Flange Beams	W14	370	17.92	16.475	2.66	1.655
Wide Flange Beams	W14	342	17.54	16.36	2.47	1.54
Wide Flange Beams	W14	311	17.12	16.23	2.26	1.41
Wide Flange Beams	W14	283	16.74	16.11	2.07	1.29
Wide Flange Beams	W14	257	16.38	15.995	1.89	1.175
Wide Flange Beams	W14	233	16.04	15.89	1.72	1.07
Wide Flange Beams	W14	211	15.72	15.8	1.56	0.98
Wide Flange Beams	W14	193	15.48	15.71	1.44	0.89
Wide Flange Beams	W14	176	15.22	15.65	1.31	0.83
Wide Flange Beams	W14	159	14.98	15.565	1.19	0.745
Wide Flange Beams	W14	145	14.78	15.5	1.09	0.68
Wide Flange Beams	W14	132	14.66	14.725	1.03	0.645
Wide Flange Beams	W14	120	14.48	14.67	0.94	0.59
Wide Flange Beams	W14	109	14.32	14.605	0.86	0.525
Wide Flange Beams	W14	99	14.16	14.565	0.78	0.485
Wide Flange Beams	W14	90	14.02	14.52	0.71	0.44
Wide Flange Beams	W14	82	14.31	10.13	0.855	0.51
Wide Flange Beams	W14	74	14.17	10.07	0.785	0.45
Wide Flange Beams	W14	68	14.04	10.035	0.72	0.415
Wide Flange Beams	W14	61	13.89	9.995	0.645	0.375
Wide Flange Beams	W14	53	13.92	8.06	0.66	0.37
Wide Flange Beams	W14	48	13.79	8.03	0.595	0.34
Wide Flange Beams	W14	43	13.66	7.995	0.53	0.305
Wide Flange Beams	W14	38	14.1	6.77	0.515	0.31
Wide Flange Beams	W14	34	13.98	6.785	0.455	0.285
Wide Flange Beams	W14	30	13.84	6.73	0.385	0.27
Wide Flange Beams	W14	26	13.91	5.025	0.42	0.255
Wide Flange Beams	W14	22	13.74	5	0.335	0.23
Wide Flange Beams	W12	336	16.82	13.385	2.955	1.775
Wide Flange Beams	W12	305	16.32	13.235	2.705	1.625
Wide Flange Beams	W12	279	15.85	13.14	2.47	1.53
Wide Flange Beams	W12	252	15.41	13.005	2.25	1.395
Wide Flange Beams	W12	230	15.05	12.895	2.07	1.285
Wide Flange Beams	W12	210	14.71	12.79	1.9	1.18
Wide Flange Beams	W12	190	14.38	12.67	1.735	1.06
Wide Flange Beams	W12	170	14.03	12.57	1.56	0.96
Wide Flange Beams	W12	152	13.71	12.48	1.4	0.87
Wide Flange Beams	W12	136	13.41	12.4	1.25	0.79
Wide Flange Beams	W12	120	13.12	12.32	1.105	0.71
Wide Flange Beams	W12	106	12.89	12.22	0.99	0.61
Wide Flange Beams	W12	96	12.71	12.16	0.9	0.55
Wide Flange Beams	W12	87	12.53	12.125	0.81	0.515
Wide Flange Beams	W12	79	12.38	12.08	0.735	0.47
Wide Flange Beams	W12	72	12.25	12.04	0.67	0.43
Wide Flange Beams	W12	65	12.12	12	0.605	0.39
Wide Flange Beams	W12	50	12.19	8.08	0.64	0.37
Wide Flange Beams	W12	45	12.06	8.045	0.575	0.335
Wide Flange Beams	W12	40	11.94	8.005	0.515	0.295
Wide Flange Beams	W12	35	12.5	6.56	0.52	0.3
Wide Flange Beams	W12	30	12.34	6.52	0.44	0.26
Wide Flange Beams	W12	26	12.22	6.49	0.38	0.23
Wide Flange Beams	W12	22	12.31	4.03	0.425	0.26
Wide Flange Beams	W12	19	12.16	4.005	0.35	0.235
Wide Flange Beams	W12	16	11.99	3.99	0.265	0.22
Wide Flange Beams	W12	14	11.91	3.97	0.225	0.022
Wide Flange Beams	W10	112	11.36	10.415	1.25	0.755
Wide Flange Beams	W10	100	11.1	10.34	1.12	0.68
Wide Flange Beams	W10	88	10.84	10.265	0.99	0.605
Wide Flange Beams	W10	77	10.6	10.19	0.87	0.53
Wide Flange Beams	W10	68	10.4	10.13	0.77	0.47
Wide Flange Beams	W10	60	10.22	10.08	0.68	0.42
Wide Flange Beams	W10	54	10.09	10.03	0.615	0.37
Wide Flange Beams	W10	49	9..98	10..000	0..560	0..340
Wide Flange Beams	W10	45	10.1	8.02	0.62	0.35
Wide Flange Beams	W10	39	9.92	7.985	0.53	0.315
Wide Flange Beams	W10	33	9.73	7.96	0.435	0.29
Wide Flange Beams	W10	30	10.47	5.81	0.51	0.3
Wide Flange Beams	W10	26	10.33	5.77	0.44	0.26
Wide Flange Beams	W10	22	10.17	5.75	0.36	0.24
Wide Flange Beams	W10	19	10.24	4.02	0.395	0.25
Wide Flange Beams	W10	17	10.11	4.01	0.33	0.24
Wide Flange Beams	W10	15	9.99	4	0.27	0.23
Wide Flange Beams	W10	12	9.87	3.96	0.21	0.19
Wide Flange Beams	W8	67	9	8.28	0.935	0.57
Wide Flange Beams	W8	58	8.75	8.22	0.81	0.51
Wide Flange Beams	W8	48	8.5	8.11	0.685	0.4
Wide Flange Beams	W8	40	8.25	8.07	0.56	0.36
Wide Flange Beams	W8	35	8.12	8.02	0.495	0.31
Wide Flange Beams	W8	31	8	7.995	0.435	0.285
Wide Flange Beams	W8	28	8.06	6.535	0.465	0.285
Wide Flange Beams	W8	24	7.93	6.49	0.4	0.245
Wide Flange Beams	W8	21	8.28	5.27	0.4	0.25
Wide Flange Beams	W8	18	8.14	5.25	0.33	0.23
Wide Flange Beams	W8	15	8.11	4.015	0.315	0.245
Wide Flange Beams	W8	13	7.99	4	0.255	0.23
Wide Flange Beams	W8	10	7.89	3.94	0.205	0.17
Wide Flange Beams	W6	25	6.38	6.08	0.455	0.32
Wide Flange Beams	W6	20	6.2	6.02	0.365	0.26
Wide Flange Beams	W6	15	5.99	5.99	0.26	0.23
Wide Flange Beams	W6	16	6.28	4.03	0.405	0.26
Wide Flange Beams	W6	12	6.03	4	0.28	0.23
Wide Flange Beams	W6	9	5.9	3.94	0.215	0.17
Wide Flange Beams	W6	8.5	5.83	3.94	0.194	0.17
Wide Flange Beams	W5	19	5.15	5.03	0.43	0.27
Wide Flange Beams	W5	16	5.01	5	0.3	0.24
Wide Flange Beams	W4	13	4.16	4.06	0.345	0.28

Type	Weight Per Ft.	Depth of Beam	Flange Width	Web Thickness
Junior Beam	11.8lb	12in	3.065in	0.225in
Junior Beam	9.00lb	10in	2.690in	0.155in
Junior Beam	6.5lb	8in	2.280in	0.135in
Junior Beam	4.40lb	6in	1.840in	0.114in
Junior Beam	18.9lb	5in	5.003in	0.416in
Junior Beam	13.00lb	4in	4.060in	0.280in

Delivering Heavy Structural Products to CO, CA, UT and beyond

Receive jumbo beams and tubes, as well as plates, bars, and angles from one supplier: Intsel Steel West. You get everything in one shipment right when you need it and include value-added services to help you meet your deadlines and budget. With facilities across the western US from Colorado, California, Utah, Arizona, Nevada, New Mexico, Montana, Idaho, and Nebraska, we can be exactly where you need us, when you need us. Call us today for a quote.
